PRODUCT INFORMATION

-Thinnest sensor: 4.5mm

-Optimized cut corners (Comfort)

-Excellent Waterproof  & Dustproof

-Durable and reliable

-APS CMOS Technology (Efficient information& detailed image)

-BENDING TEST more than 8000 times

-theoretical resolution 25 Lp/mm

Primary technical parameters:

-Power adapter input: 5V/USB interface

-Effective area: 20*30mm(H1)/26*36mm(H2)

-Pixel matrix size 1000*1500(H1)/1300*1800mm(H2)

-Average Pixel size 20μm 4

-Effective resolution ＞ 12lp/mm

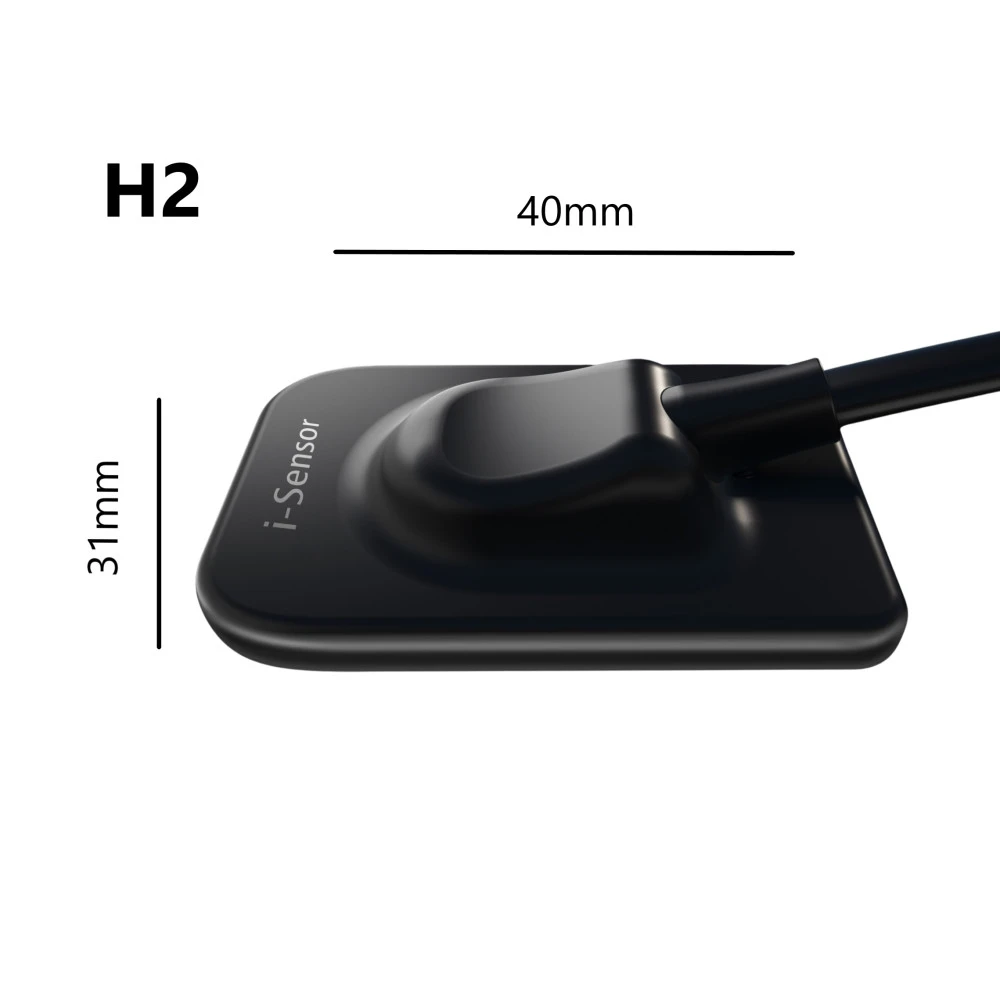

-Specifications: 38.5*25*4.5mm(H1)/40.0*31.0*4.5mm(H2)

-Weight: 118g(H1)/158g(H2)

Now there is no limit for computers connected to the software license.

I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process. Easy-to-use software, with workflow efficiency improvements.

As a powerful, centralized imaging hub for all patient images, Woodpecker i-Sensor manages all digital images, including intra- and extra-oral radiographs, as well as intra- and extra-oral photographs.

An ideal solution for intraoral imaging needs, the easy-to-use sensor allows users to capture exceptional images quickly and easily.

Country of Origin: China
