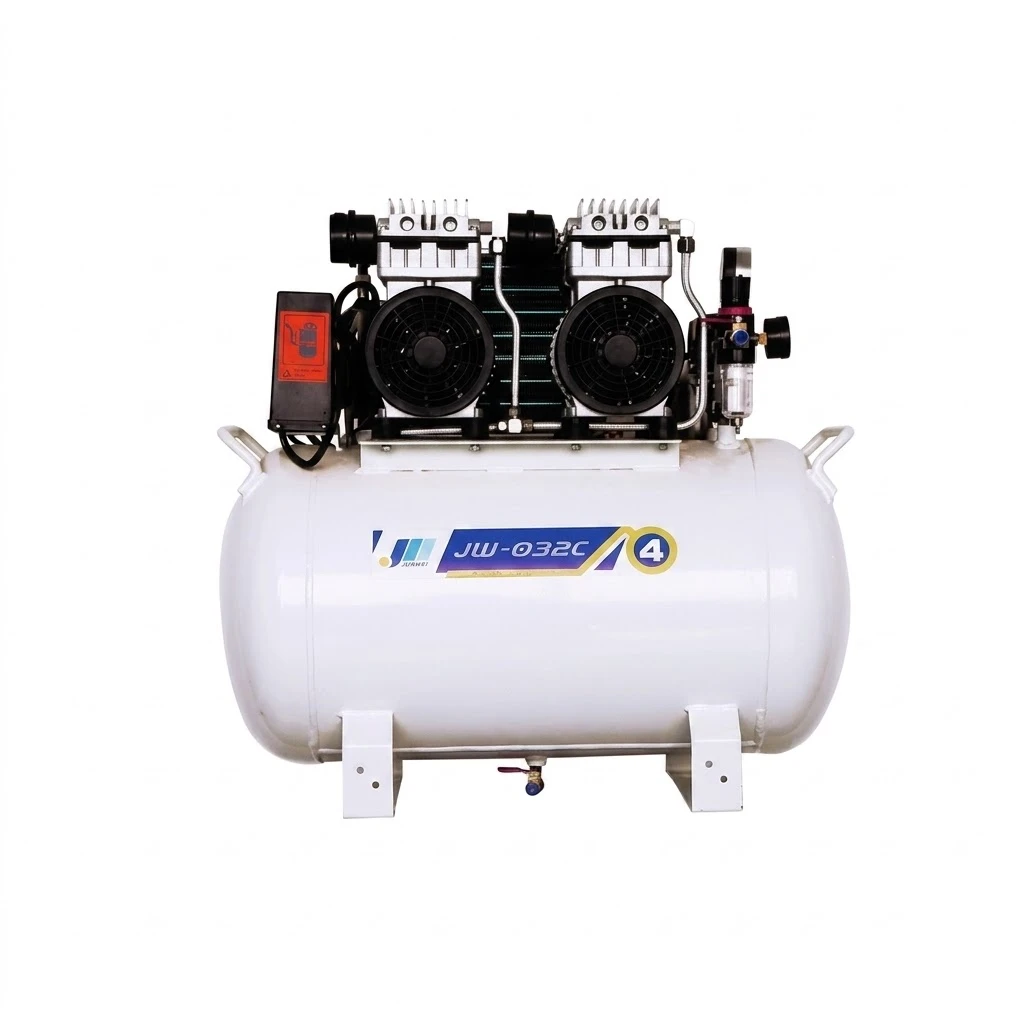

The JW-032C oil-free air dental compressor is designed for 1-2 dental units and is powered by a self-lubricating material. Self-lubricating material refers to a low-friction polymer. An oil-free compressor has more advantages than an oil compressor; it ensures that there is no oil in the working environment, does not create a taste, and ensures sanitary working conditions and cleanliness.

The engine covers of the product are made of aluminum; the tank and transfer handles are made of steel painted white.

A circuit breaker is installed inside the compressor, the design of which includes two types of breakers: thermal and magnetic. A thermal breaker is designed to protect an electrical circuit from overcurrent. It is triggered when the current in the circuit exceeds the rated current and does not respond to a short-term increase in current. A magnetic breaker is triggered when the value of the rated current increases several times.

Specifications

• Supply voltage - 230 V ±10%, frequency: 50/60 Hz
• Operating pressure - 6 bar
• Power, not more than 1.7 kW
• Nominal flow rate - 220 l/min ±3%
• Noise level 65-70 dB
• Max. pressure: not more than 0.8 MPa
• Starting pressure - 0.5 not less than MPa
• Engine rotor speed - 1380 rpm ±3%
• Tank volume - 55 L
• Weight - 45 kg
• Overall dimensions - 650 x 400 x 620 (±2) mm
• Diameter of PU tubes - 8 ±1 mm
• Number of dental units supplied - 1-2 pcs.
• Number of engines - 2 pcs.
• Power cord length: not less than 1.8 m
• Number of cores in the power cord - 3 pcs.

Country of Origin: China
