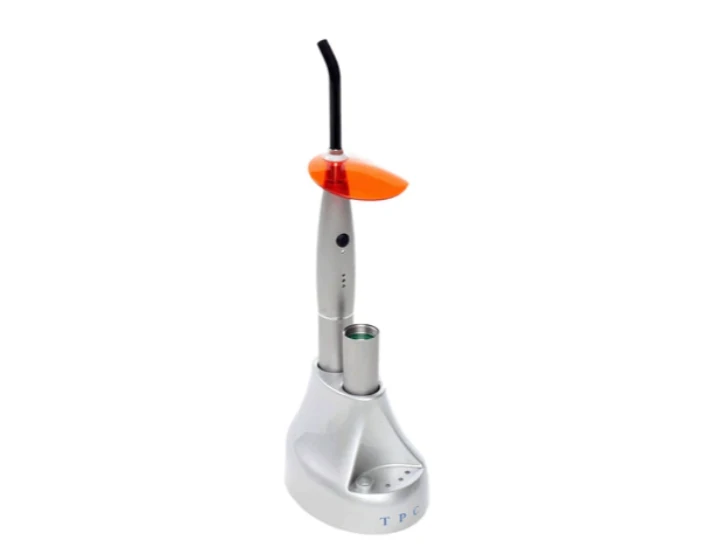

TPC Light Cure

MADE IN USA

Range of Light (in nm) 430 - 490 nm

Light Intensity at the Tip (mW/cm2) 1200 mW

Battery Life 200 cycles at STANDARD mode, 10 seconds per cycle

135 cycles at STANDARD mode, 20 seconds per cycle.

Charging Time to Complete 5 Hours

Battery Type Lithium Ion

Cradle Battery Rechargeable

Operating Temperature 15 - 30°C (60 - 86 °F) Unit turns off automatically when the temperature at the wand tip reaches 48° C

Power Input, Curing Light 5.2 VDC 1.0 A

Power Input, Power Supply 90 - 240 VAC 50 - 60 Hz

Pulse Rate 10 Hz

Pulse Duty Cycle 50%

Storage and Transport Conditions 0 - 40°C (32 - 104°F)

0 - 100% RH

-1000 to + 9000 meters elevation
